MSG-4K-DM
MSG-4K-DM
Overview
Design
- Max PV Voltage up to 500V
- Single MPPT
- High efficiency up to 97.5%
- Smaller and Lighter
- IP65 protection
- Easy installation
- Reactive Power controller
- Digital controller
Certification
- TUV
- CE
- VDE 0126
- EN 50438
- VDE 4105
- IEC 62109
- IEC 61000
- IEC 61727
- IEC 61683
- IEC 62116
Specifications
Input | : |
Max. DC voltage/ Nominal DC voltage | 500Vdc / 380Vdc |
MPPT voltage range | 100-490Vdc |
Min. / start DC voltage | 120 / 150Vdc |
Full load MPPT voltage range | 165-400Vdc |
Number of MPPT trackers | 2 |
Strings per MPPT tracker | 1 |
Max. DC power per MPPT tracker | 2500W |
Max. input current per MPPT tracker | 13A / 13A |
Output (AC) | : |
Max. AC output Power | 4000W |
Nominal AC voltage | 230Vac |
AC voltage range | 230Vac±20% |
Nominal AC grid frequency | 50 / 60Hz |
AC grid frequency range | 50 / 60Hz(±5Hz) |
Max. output current | 17.5A |
Power factor (coscD) | Lagging0.9—leading 0.9 |
THDI | <3% |
AC connection | LN+PE |
Topology | Transformer-less |
Efficiency | : |

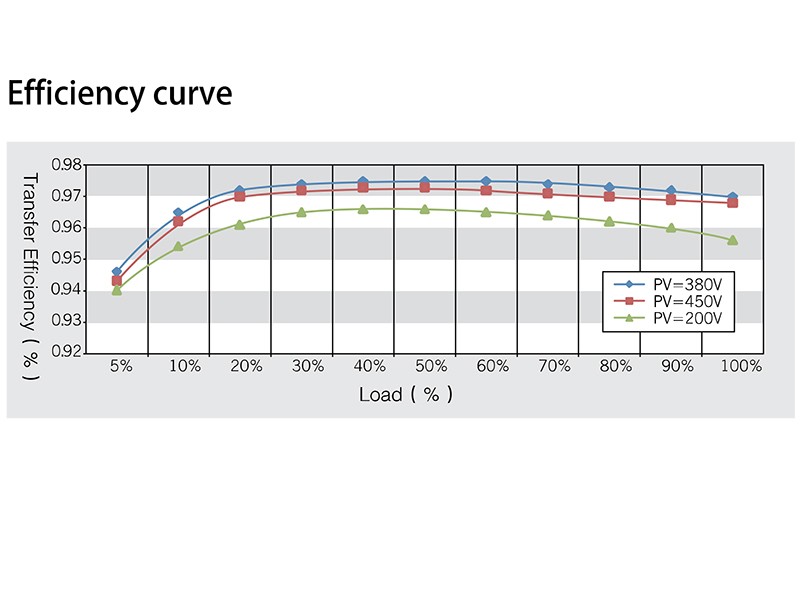

Max. efficiency | 97.5% |
Euro efficiency | 97% |
MPPT efficiency | 99.90% |
Consumption: standby / night | <5W / <0.2W |
Protection devices | : |
AC leakage current fault protection | Yes |
Ground fault protection | Yes |
Anti-islanding protection | Yes |
DC overvoltage protection | Yes |
DC surge protection | Yes |
AC surge protection | Yes |
DC reverse-polarity protection | Yes |
Physical | : |
Dimensions (W / L/ D) in mm | 329x466x149 |
Weight | 14.9Kg |
Environment | : |
Operating temperature range | —25°C — +60°C |
Noise emission (typical) | 25dB |
Cooling type | Natural cooling |
Protection rating | IP65 |
Features | : |
LCD display | Yes |
Interfaces | RS485 |
Optional | DC Switch / WiFi Plug / GPRS Plug |
