MSG-2K-SM
MSG-2K-SM
Overview
Design
- Max PV Voltage up to 500V
- Single MPPT
- High efficiency up to 97.5%
- Smaller and Lighter
- IP65 protection
- Easy installation
Certification
- TUV
- CE
- VDE 0126
- EN 50438
- VDE 4105
- IEC 62109
- IEC 61000
- IEC 61727
- IEC 61683
- IEC 62116
Specifications
Input | : |
Max. DC voltage / Nominal DC voltage | 500Vdc / 380Vdc |
MPPT voltage range | 100-490Vdc |
Full load MPPT voltage range | 190-400Vdc |
Min. / start DC voltage | 120 / 150Vdc |
Number of MPPT trackers | 1 |
Strings per MPPT tracker | 1 |
Max. input current per MPPT tracker | 13A |
Output (AC) | : |
Max. AC output Power | 2000W |
Nominal AC voltage | 230Vac |
AC voltage range | 230Vac±20% |
Nominal AC grid frequency | 50 / 60Hz |
AC grid frequency range | 50 / 60Hz(±5Hz) |
Max. output current | 9A |
Power factor (cos(D) | Lagging 0.9—leading 0.9 |
THDI | <3% |
AC connection | LN+PE |
Topology | Transformer-less |

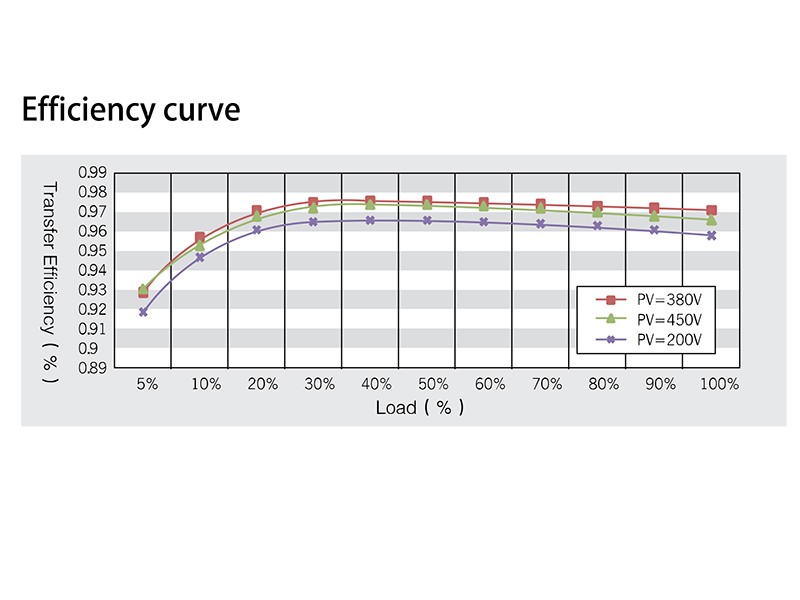

Efficiency | : |
Max. efficiency | 97.6% |
Euro efficiency | 97% |
MPPT efficiency | 99.90% |
Consumption: standby / night | <5W / <0.2W |
protection device | : |
AC leakage current fault protection | Yes |
Ground fault protection | Yes |
Anti-islanding protection | Yes |
DC overvoltage protection | Yes |
DC surge protection | Yes |
AC surge protection | Yes |
DC reverse-polarity protection | Yes |
Physical | : |
Dimensions (W / L / D) in mm | 264 / 326 / 127 |
Weight | 8.6Kg |
Environment | : |
Operating temperature range | —25°C--+60°C |
Noise emission (typical) | 25dB |
Cooling type | Natural cooling |
Protection rating | IP65 |
Features | : |
LCD display | Yes |
Interfaces | RS485 |
Optional | DC Switch / WiFi Plug / GPRS Plug |
