MSG-3.2K-DM
MSG-3.2K-DM
Overview
Design
- Max PV Voltage up to 500V
- Single MPPT
- High efficiency up to 97.5%
- Smaller and Lighter
- IP65 protection
- Easy installation
- Reactive Power controller
- Digital controller
Certification
- TUV
- CE
- VDE 0126
- EN 50438
- VDE 4105
- IEC 62109
- IEC 61000
- IEC 61727
- IEC 61683
- IEC 62116
Specifications
| Input | : |
| Max. DC voltage/ Nominal DC voltage | 500Vdc / 380Vdc |
| MPPT voltage range | 100-490Vdc |
| Min. / start DC voltage | 120 / 150Vdc |
| Full load MPPT voltage range | 150-400Vdc |
| Number of MPPT trackers | 2 |
| Strings per MPPT tracker | 1 |
| Max. DC power per MPPT tracker | 1800W |
| Max. input current per MPPT tracker | 11A / 11A |
| Output (AC) | : |
| Max. AC output Power | 3000W |
| Nominal AC voltage | 230Vac |
| AC voltage range | 230Vac±20% |
| Nominal AC grid frequency | 50 / 60Hz |
| AC grid frequency range | 50 / 60Hz(±5Hz) |
| Max. output current | 14A |
| Power factor (coscD) | Lagging0.9—leading 0.9 |
| THDI | <3% |
| AC connection | LN+PE |
| Topology | Transformer-less |

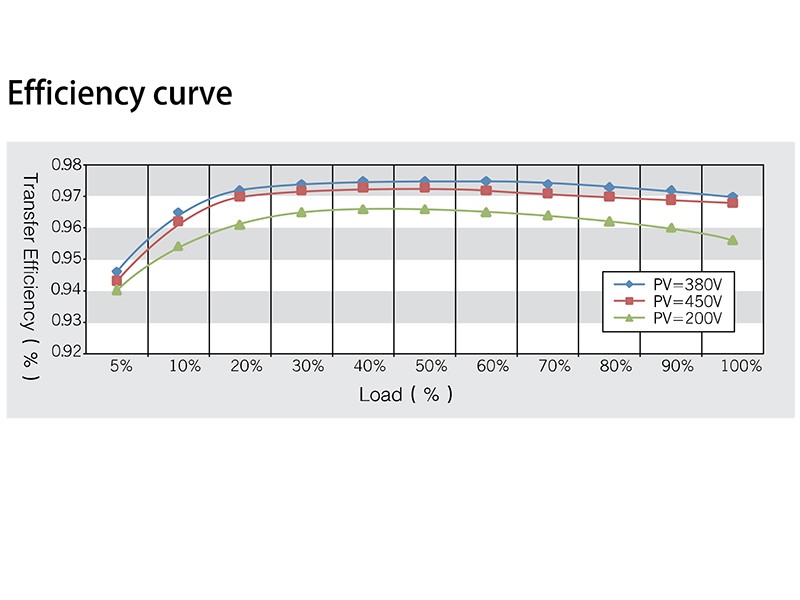

| Efficiency | : |
| Max. efficiency | 97.5% |
| Euro efficiency | 97% |
| MPPT efficiency | 99.90% |
| Consumption: standby / night | <5W / <0.2W |
| Protection devices | : |
| AC leakage current fault protection | Yes |
| Ground fault protection | Yes |
| Anti-islanding protection | Yes |
| DC overvoltage protection | Yes |
| DC surge protection | Yes |
| AC surge protection | Yes |
| DC reverse-polarity protection | Yes |
| Physical | : |
| Dimensions (W / L/ D) in mm | 329x466x149 |
| Weight | 14.5Kg |
| Environment | : |
| Operating temperature range | —25°C — +60°C |
| Noise emission (typical) | 25dB |
| Cooling type | Natural cooling |
| Protection rating | IP65 |
| Features | : |
| LCD display | Yes |
| Interfaces | RS485 |
| Optional | DC Switch / WiFi Plug / GPRS Plug |
