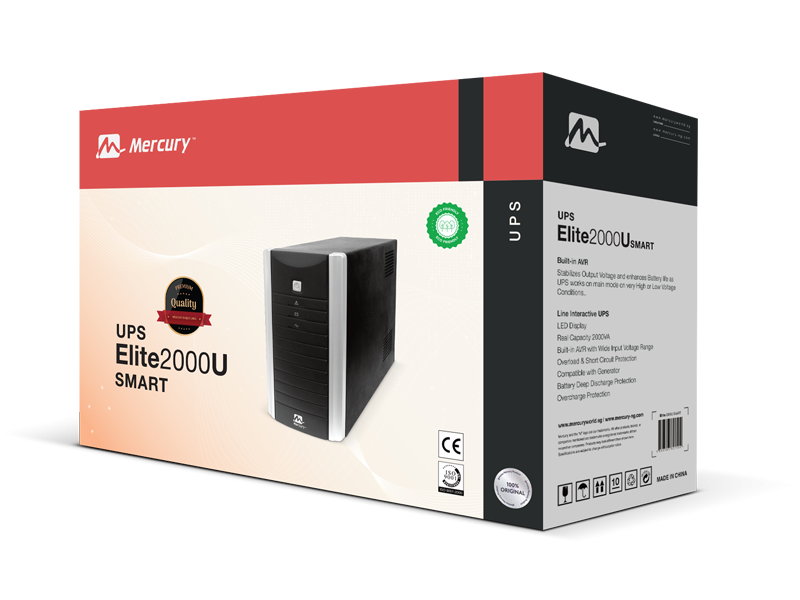

ELITE 2000U Smart
Line interactive UPS
Overview
- Built-in AVR
- Overload protection
- Overcharge protection
- Short circuit protection
- Wide input voltage range
- Compatible with generators
- Battery deep discharge protection
Specifications
| Input | |
| Capacity | 2000VA/1200W |
| Voltage Range (220V) | 140~300VAC |
| Frequency | 50/60Hz (Auto sensing) |
| Phase | Single phase |
| Socket | With Fuse |
| Cold Start | Press the ON/OFF switch (0%~100% load) |
| Output | |
| Rating Capacity | 2000VA |
| Rating Power | 1200W |
| Waveform | Waveform Battery mode (Simulated Sinewave) AC mode (Sinewave) |
| Power Factor | 0.6 |
| Rating Voltage | 220VAC |
| AC Voltage Regulation | ±10% (Battery mode) |
| Rear Output Socket | 4 x Universal (Battery backup) |
| Output Frequency | |
| Rating Frequency | 50/60Hz±1Hz |
| Line Mode | Synchronize with the utility |
| Environment | |
| Tempreature | 0˚C~40˚C |
| Humidity | 0%~90%RH (Non-condensing) |
| Noise Level | Less than 45dB |
| Indicators | |
| AC Mode | Green lighting |
| Battery Mode | Yellow flashing |
| Fault | Red lighting |
| Physical | |
| Dimensions (WxDxH) (mm) | 390 x 125 x 225 |
| Net Weight (kg) | 13.4±0.3 |
| Transfer Time | Typical 2~6ms (Max 10ms) |
| Communication Interface | USB/RJ11 (Optional) |
| Battery & Runtime | |
| Rating Voltage | 12V/9AH x 2 |
| Recharge Time | 6-8 hrs recover to 90% capacity |
| Change Current | About 1A at Normal mode |
| Short Circuit Protection | |
| Line Mode | Fuse & firmware protection |
| Battery Mode | Firmware protection |
| Overload Protection | |
| Line Mode | Load<110%±5% go to fault mode after 5 mins |
| Load<120%±5% go to fault mode immediately | |
| Battery Mode | Load<110%±5% shut down after 5 secs |
| Load<120%±5% shut down immediately | |
| Protection | |
| Full Protection | Overload, discharge & overcharge protection |
| Alarm | |
| Battery Mode | Sounding every 10 secs |
| Low Battery | Sounding every sec |
| Overload | Sounding every 0.5 sec |
| Fault | Continuously sounding |
| Management | |
| Compatible with OS | Supports Windows® 2000/2003/XP/Vista/2008/7/8.1/10 |
