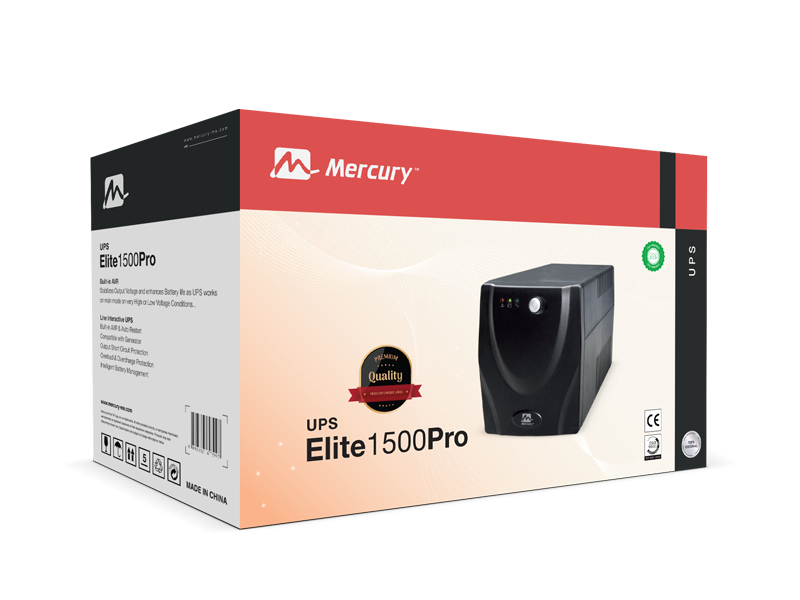

Elite1500Pro
Elite1500Pro
Specifications
| Input Voltage | 220VAC |
| Input Frequency | 50Hz |
| Input Phase | Single Phase |
| PowerCord | Built-in Cable with Fuse |
| Input Voltage Range(May vary as per Country requirement) | 140~300VAC |
| Rating Output | 1500VA |
| Wave Form | Battery Mode (Simulated sine Wave) AC Mode (Synchronize with Input) |
| Rating Voltage | 220V |
| Output Range | 220VAC - 11% to + 17% (Battery Mode) |
| Rear Output Socket | 4x Universal - Battery Backup |
| Transfer Time | Typical 4-8ms |
| Communication Interface | Nil |
| Rating Frequency | 50Hz |
| Line Mode | Synchronize with the Utility |
| Battery Mode | 50Hz±1Hz |
| Line Mode | FUSE & Firmware Protection |
| Battery Mode | Firmware Protection |
| <b>Overload Protection</b> | 0 |
| Line Mode | 110%±5% (go to fault mode after 5 minutes) 120%±5% (go to fault mode immediately) |
| Battery Mode | 85%±5% (shut down after 5 seconds) 100%±5% (shut down immediately) |
| <b>Battery and Runtime</b> | 0 |
| Rating | 2x12V/8.2AH |
| Backup Time - Typical | 30mins~40mins (Depending On Load) |
| Charging Current | About 1A at Normal Mode |
| OverCharge Protection | 29V±0.2V(Stop Charging) <27V ±0.5V(Recharge) |
| <b>Packaging</b> | 0 |
| Dimension(mm) | 388x203x260 |
| Master Carton(mm) | 425x403x280 |
| Packsize per Master Carton(mm) | 2 |
| <b>Input</b> | 0 |
| <b>Output</b> | . |
| <b>Output Frequency</b> | 0 |
| <b>Short Circuit Protection</b> | 0 |
