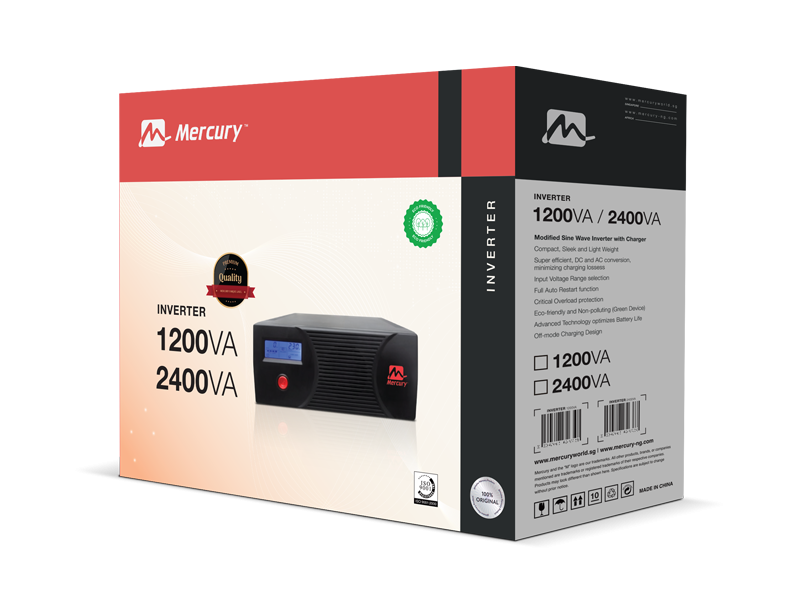

LCD Inverter 1.2KVA-2.4KVA
Inverter | 1200VA / 2400VA
Overview
- User selectable for accepting wide input voltage
- Off mode charging function
- Fast charging capacity
- Max 10A or 20A of charging current for choice
- 3 stage Intelligent charge control
- Full protection function
- Auto restart function
- LCD indicators and buzzer alarms
- Rack-Tower design for flexible palcement
- Compact size for convenient use and storage
Specifications
| Model | SKY G2 700 | SKY G2 1400 |
| Capacity(kVA/kW) | 1200KVA/720W | 2400KVA/1440W |
| Input | ||
| voltage range | ||
| Narrow Range Mode | 170~280Vac | |
| Wide Range Mode | 90~280Vac | |
| Frequency Range | 50/60Hz(Auto sensing) | |
| Output | ||
| AC Voltage Regulation (Batt. Mode) | 230Vac±10% | |
| Frequency Range(Batt. Mode) | 50/60Hz ± 1Hz | |
| Transfer Time | 20ms typical | |
| Waveform | Simulated Sine Wave | |
| Battery | ||
| Battery Voltage | 12V | 24V |
| Charging Current | 10A/20A | |
| Protection | ||
| Protection | Low battery alar, low battery shutdown, over charge protection, overload protection, | |
| over temperature, short circuit protection | ||
| Alarm | ||
| Low Battery | Beep every second | |
| Overload | Fault & Continuous beep | |
| Operating Environment | ||
| Humidity | 0-90% RH @ 0-50°C (non-condensing) | |
| Physical | ||
| Dimension (DxWxH) mm | 310x239x93 | |
| Others | ||
| AC input voltage range selection | yes | |
| AC charging current selection | yes | |
